EZI-GLIDE® LONGSPAN MOBILE SHELVING

Description

Ezi-Glide® Longspan Mobile Shelving System

Ezi-Glide® Longspan mobile shelving system is a high capacity versatile storage system, available in a range of standard sizes, which can also be tailor-made to suit your specific needs. The mobile shelving system has been designed to store larger items such as archive boxes and other bulky items that require more shelf space.

Ezi-Glide® Longspan incorporates a unique low profile tracking system with heavy-duty runners that provide reliability and ease of use. The shelving includes the option of steel, wire or timber infill shelves. Garment hanging rails are also available in a range of configurations.

Features

Ezi-Glide® Longspan Mobile Shelving System

  • Large diameter wheels for ease of movement
  • Strong and durable; long lasting, quality storage system
  • Low Profile Tracks
  • Adjustable beams at 50mm increments
  • Comprehensive range of sizes
  • Easily adapted to suit available space
  • Stepped beams for infill shelves
  • Option of timber, steel or wire infill shelves
  • Option of finishing panels to enhance appearance
  • Tracks do not require fixing to the floor
  • System can be easily relocated and extended
  • System extension does not require dismantling of existing system



Accessories

  • Steel or timber laminate end finishing panels
  • Timber infill shelf
  • Steel infill shelf
  • Wire infill shelf

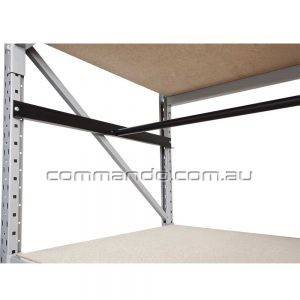

  • Hanging rails

Specifications

Ezi-Glide® Longspan Mobile Shelving System

Track System: Low Profile
Drive Options: Manual or Mechanically Assisted Operation
Configurations: Configured to suit requirements
Shelving Height: 1900mm
2200mm
2500mm
3000mm
System Overall height: Add 130mm to shelving height
Shelving Width: 900mm
1200mm
1500mm
1800mm
2100mm
2400mm
Shelving Depth: 450mm
600mm
840mm
1000mm
Beam Height: 60mm
Beam Adjustment: 50mm
Beam Capacity: Up to 950kg UDL* per pair of beams
Standard Colour: Light Grey

Other non-standard sizes and colours can be manufactured on request.

*UDL = Uniformly Distributed Load. Shelf and bay load capacities vary.  Please contact a Commando consultant for information based on your requirements.
