PALLET RACKING

Add to Enquiry Cart



Product Description

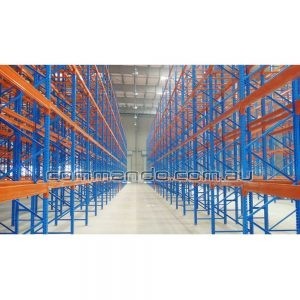

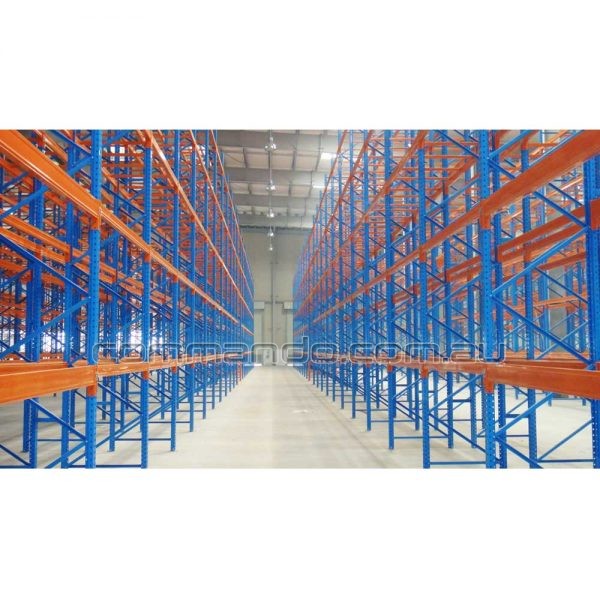

Pallet Racking Commando Pallet Racking System provides efficient use of storage space for palletised loads. With a wide range of options and components available, the Commando system can be tailor made to meet your precise needs. Commando Pallet Racking provides efficient pallet storage, which is compatible with all types of pallets. Commando pallet racking is designed and manufactured in accordance with ISO9001: 2000 International Standards and complies with SEMA, FEM, RMI, and AS4084 Code of Practice for the design of pallet racking.

Commando Pallet Racking uprights bear the full load of the pallet racking system. The transfer of the rack load through the uprights is therefore critical to the overall system strength, safety and performance.

The upright is designed to carry the rack load on the front face without twisting or distorting the steel.

The profile of the slots transfers the load vertically down the upright and allows the beams to connect without being wedged in so that the side loads are not imposed on the upright by the beam connector.

Commando uprights have a significantly deeper flange (side face) than other conventional racking systems, providing greater overall strength, rigidity and greater resistance to lateral impact damage.

Features

  • Strong, robust and reliable
  • Easy beam adjustment allows for variable pallet heights
  • Large range of sizes available
  • Easily adapted to suit available space
  • Low level pallets can be stored directly on the floor
  • Complies with Australian Standard AS4084

Specifications

Height:915mm
1829mm
2129mm
2438mm
3048mm
3658mm
4267mm
4877mm
6096mm
7239mm
Width:1372mm
1524mm
1829mm
2133mm
2591mm
2743mm
3048mm
3350mm
3658mm
3810mm
Depth:609mm
838mm
1219mm
Beam Height:Various
Beam Adjustment:50mm
Beam Capacity:Up to 3100kg UDL* per pair of beams
Standard Colour:Blue Frames
Orange Beams

*UDL = Uniformly Distributed Load.  Beam and bay load capacities vary.  Please contact a Commando consultant for information based on your requirements.
